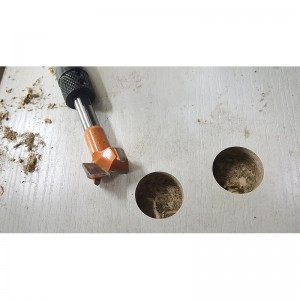

TCT hinge boring bits
We have 13 years experience, the hinge boring bits with tungsten carbide tips with diameter from 15mm to 45mm can be provided
Usually we prepare stock for standard ones.
2.Delivery time is 10-25bdays
3.Free samples can be provided for testing.
The carbide inserts and knives are made from high quality virgin carbide alloy for Industrial use. It can be fit on spiral planer cutter blocks in woodworking process. It has high precision ground and can provide longer lifetime.
tool code right hand |
tool code left hand |
D(MM) |
b(MM) |
d(MM) |
L(MM) |
HH05715R |
HH05715L |
15 |
27 |
10 |
57.5 |
HH05716R |
HH05716L |
16 |
27 |
10 |
57.5 |
HH05718R |
HH05718L |
18 |
27 |
10 |
57.5 |
HH05720R |
HH05720L |
20 |
27 |
10 |
57.5 |
HH05725R |
HH05725L |
25 |
27 |
10 |
57.5 |
HH05726R |
HH05726L |
26 |
27 |
10 |
57.5 |
HH05728R |
HH05728L |
28 |
27 |
10 |
57.5 |
HH05730R |
HH05730L |
30 |
27 |
10 |
57.5 |
HH05732R |
HH05732L |
32 |
27 |
10 |
57.5 |
HH05735R |
HH05735L |
35 |
27 |
10 |
57.5 |
HH05738R |
HH05738L |
38 |
27 |
10 |
57.5 |
HH05740R |
HH05740L |
40 |
27 |
10 |
57.5 |
HH05745R |
HH05745L |
45 |
27 |
10 |
57.5 |
HH07015R |
HH07015L |
15 |
40 |
10 |
70 |
HH07016R |
HH07016L |
16 |
40 |
10 |
70 |
HH07018R |
HH07018L |
18 |
40 |
10 |
70 |
HH07020R |
HH07020L |
20 |
40 |
10 |
70 |
HH07025R |
HH07025L |
25 |
40 |
10 |
70 |
HH07026R |
HH07026L |
26 |
40 |
10 |
70 |
HH07028R |
HH07028L |
28 |
40 |
10 |
70 |
HH07030R |
HH07030L |
30 |
40 |
10 |
70 |
HH07032R |
HH07032L |
32 |
40 |
10 |
70 |
HH07035R |
HH07035L |
35 |
40 |
10 |
70 |
HH07038R |
HH07038L |
38 |
40 |
10 |
70 |
HH07040R |
HH07040L |
40 |
40 |
10 |
70 |
HH07045R |
HH07045L |
45 |
40 |
10 |
70 |
OTHER OVERAL LENGTH AND SHANK SIZES ARE AVAILABLE
The TCT hinge boring bits mostly work on the furniture in WOOD, MDF,etc materials. We can also provide spare parts like adaptor, screws, countersink and other tools.
Maintenance of woodworking drill bit
1. When using a drill, take it out of the box and install it into the collet chuck of the spindle or the tool magazine for automatic drill replacement. Put it back in the box after use.
2. To measure the diameter of the industrial woodworking drill bit, use a non-contact measuring tools to prevent the cutting edge from contacting with the mechanical measuring instrument and being injured.
3. In order to ensure the service life of your woodworking drill and reduce failures, we must regularly check whether the lubricating oil on the woodworking drill is enough or not. If there is a shortage, please fill it in time.
4. Daily attention should be paid to removing sawdust and dust on the guide rails, sliding seats and guide rails of the vertical box, and the guide rails should be cleaned and lubricated before moving each time. Check the oil level of the two parts daily.
If you need samples for testing, welcome to send us inquiry. .
