High Performance brad point boring bits -XW-2F
•The spiral part has P.T.F.E.
• Tungsten carbide head is with precise balance center point.
•2 precise ground cutting edges (Z2).
•2 spiral flutes.
1.The lifetime is about 20% than standard ones, price is only 5% higher.
2.Better for machine tool’s high rotate speed and feeding.
THE LIST SHOWS STANDARD STOCKED ITEMS ONLY.
OTHER OVERAL LENGTH AND SHANK SIZES ARE AVAILABLE
|
tool code right hand |
tool code left hand |
D(MM) |
b(MM) |
d(MM) |
L(MM) |
|
H2XW070040R |
H2XW070040L |
4 |
20 |
10 |
70 |
|
H2XW070045R |
H2XW070045L |
4.5 |
20 |
10 |
70 |
|
H2XW070050R |
H2XW070050L |
5 |
20 |
10 |
70 |
|
H2XW070051R |
H2XW070051L |
5.1 |
20 |
10 |
70 |
|
H2XW070052R |
H2XW070052L |
5.2 |
20 |
10 |
70 |
|
H2XW070055R |
H2XW070055L |
5.5 |
20 |
10 |
70 |
|
H2XW070060R |
H2XW070060L |
6 |
20 |
10 |
70 |
|
H2XW070065R |
H2XW070065L |
6.5 |
20 |
10 |
70 |
|
H2XW070067R |
H2XW070067L |
6.7 |
20 |
10 |
70 |
|
H2XW070070R |
H2XW070070L |
7 |
20 |
10 |
70 |
|
H2XW070080R |
H2XW070080L |
8 |
20 |
10 |
70 |
|
H2XW070082R |
H2XW070082L |
8.2 |
20 |
10 |
70 |
|
H2XW070090R |
H2XW070090L |
9 |
20 |
10 |
70 |
|
H2XW070100R |
H2XW070100L |
10 |
20 |
10 |
70 |
|
H2XW070110R |
H2XW070110L |
11 |
20 |
10 |
70 |
|
H2XW070120R |
H2XW070120L |
12 |
20 |
10 |
70 |
|
H2XW070130R |
H2XW070130L |
13 |
20 |
10 |
70 |
|
H2XW070140R |
H2XW070140L |
14 |
20 |
10 |
70 |
|
H2XW070150R |
H2XW070150L |
15 |
20 |
10 |
70 |
|
H2XW057040R |
H2XW057040L |
4 |
20 |
10 |
57.5 |
|
H2XW057045R |
H2XW057045L |
4.5 |
20 |
10 |
57.5 |
|
H2XW057050R |
H2XW057050L |
5 |
20 |
10 |
57.5 |
|
H2XW057051R |
H2XW057051L |
5.1 |
20 |
10 |
57.5 |
|
H2XW057052R |
H2XW057052L |
5.2 |
20 |
10 |
57.5 |
|
H2XW057055R |
H2XW057055L |
5.5 |
20 |
10 |
57.5 |
|
H2XW057060R |
H2XW057060L |
6 |
20 |
10 |
57.5 |
|
H2XW057065R |
H2XW057065L |
6.5 |
20 |
10 |
57.5 |
|
H2XW057067R |
H2XW057067L |
6.7 |
20 |
10 |
57.5 |
|
H2XW057070R |
H2XW057070L |
7 |
20 |
10 |
57.5 |
|
H2XW057080R |
H2XW057080L |
8 |
20 |
10 |
57.5 |
|
H2XW057082R |
H2XW057082L |
8.2 |
20 |
10 |
57.5 |
|
H2XW057090R |
H2XW057090L |
9 |
20 |
10 |
57.5 |
|
H2XW057100R |
H2XW057100L |
10 |
20 |
10 |
57.5 |
|
H2XW057110R |
H2XW057110L |
11 |
20 |
10 |
57.5 |
|
H2XW057120R |
H2XW057120L |
12 |
20 |
10 |
57.5 |
|
H2XW057130R |
H2XW057130L |
13 |
20 |
10 |
57.5 |
|
H2XW057140R |
H2XW057140L |
14 |
20 |
10 |
57.5 |
|
H2XW057150R |
H2XW057150L |
15 |
20 |
10 |
57.5 |
Suggested Parameters for dowel drills bits are as below:

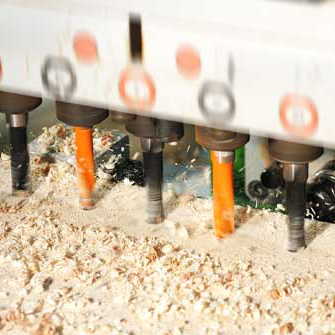

Used for CNC and drill rig machining
The drilling Speed is 4500-8000(r/min) , Feeding is:2-8(m/min)
Maximum drilling depth for length 57mm drills is 20mm, for 70mm drills, Max drilling depth is 33mm.
Our drills can easily used for solid wood, MDF wood-based Panel, wood composites The service life is 20% longer than ordinary drills. The diameter of the drill is from 3mm to 15mm. The total length of the drill is 57mm, 70mm, 80mm, 85mm, 90mm, 105mm, etc. There are about 500 specifications. The monthly output is 20,000pieces. We not just exported products to Germany, Italy, Poland, Turkey but also help our customers to win more power.
If you want to know more detail information for other Dimensions, just do not hesitate to contact us, we have professional technique team to answer your question within 24 hours.
